System survey

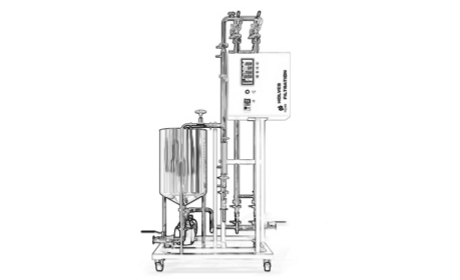

● Ceramic membrane experiment device (CM-05) can be applied to microfiltration,
   ultrafiltration and fine ultrafiltration

● the membrane can be selected according to the size of material molecular weight, it can
   separate the material of 1.4 μm -1KD

● With advantages of simple and flexible operation and easy cleaning, etc.

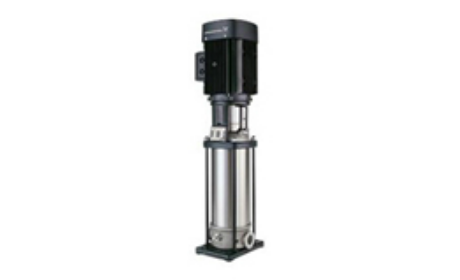

  Power Unit


    Imported GRUNDFOS pump

    Frequency converting control

    High pressure protection device

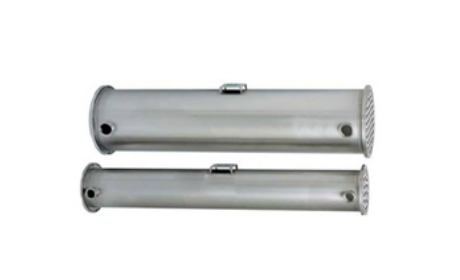

Membrane Shell


    PH range：0-14

    Working pressure：<95℃

     Maximum working pressure：<10bar

     Connection type：High pressure clamp quick disconnection

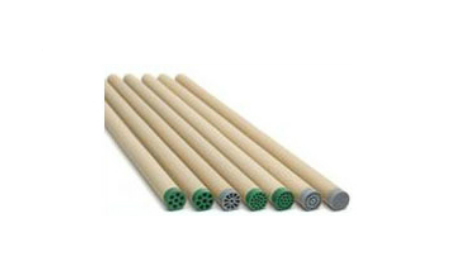

Ceramic Membrane Element


 French original imported ceramic membrane

 Mmebrane type：φ25mm：580/1178mm

 Range of application：Microfiltration, ultrafiltration and fine ultrafiltration

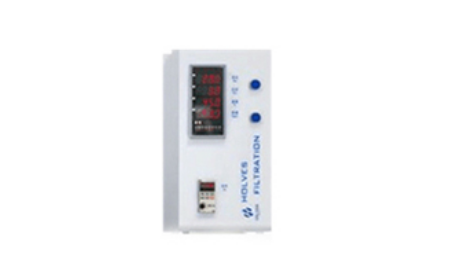

 Electrical Control Cabinet


     Temperature, pressure, on-line monitoring of liquid velocity

     Pump frequency conversion controller, real-time display speed and frequency

      Temperature, pressure preset alarm






          Material Standard

     Contact material part: Material AISI 304, food grade hose material circulation tank

      Non-contact material part: Material AISI 304, carbon steel + spray paint

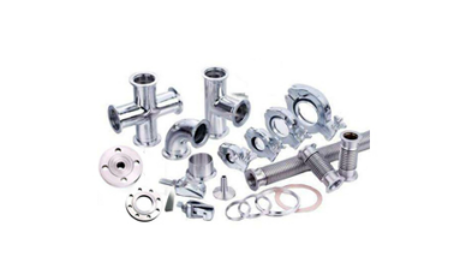

      Pipeline:  Sanitary seamless stainless steel tube
      Valves: Food grade sanitary direct ball valves, diaphragm valves
